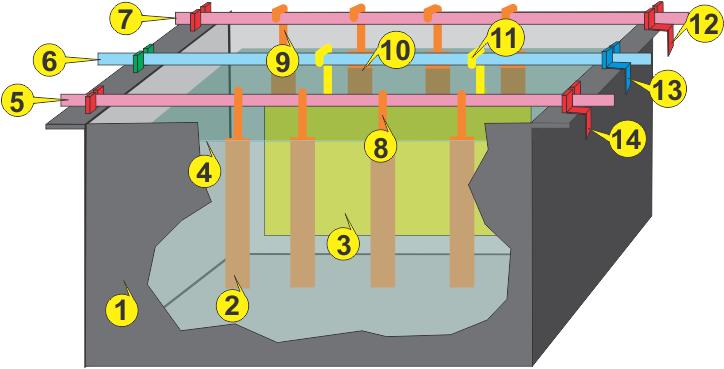

1 -Tank Body
2 - Anode Front Row ( 1 of 4)
3 - Cathode (the workpiece or job)
4 - Solution upper level
5 - Anode Rail (Front)
6 - Cathode Rail
7 - Anode Rail Rear
8 - Anode Hook (front - connect anode to rail)
9 - Anode Hook (rear -- connect anode to rail)
10 - Anode Rear Row (1 of 4)
11 - Cathode Hook - connect cathode to cathode rail
12 - Rear Anode rail connection to rectifier
13 - Cathode rail connection to rectifier
